Honeycomb Solutions

Business Initiative

  • Using Pro/ENGINEER as their in-house CAD system, Euro-Rigging was looking for a combination of top quality and experience in Pro/ENGINEER and specific know-how in the design of heavy mechanical equipment, such as cranes.

Solution

  • Euro-Rigging invested in Pro/ENGINEER Foundation and Pro/ENGINEER Enterprise SE packages.
  • To optimize Structural designs they opted for one additional Pro/E Mechanica module.
  • To be able to fully support the top down design process they opted for one additional Advanced Assembly Extension.
  • To fully integrate engineering calculations within the design process they have invested in Mathcad for engineers

Result

  • Able to put more detail in the technical solution for a better product in the long term using Mathcad for engineers
  • The high level of integration of Pro/ENGINEER and MECHANICA makes it possible to analyse alternatives and modifications relatively fast, resulting in a better approach of the optimum design

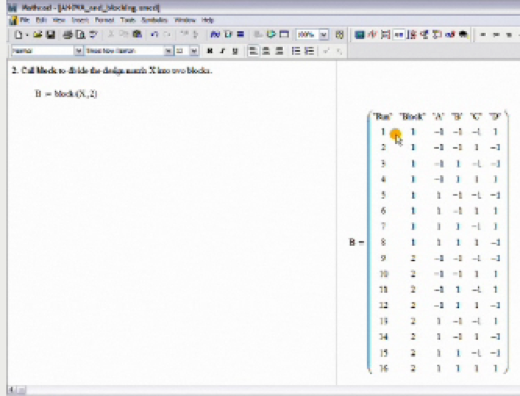

PTC Mathcad Prime 3.1
